M2 – Analogue

The same size as an MB25 yet 20% lighter.
Control machine parameters via analogue switches from the torch handle.
230A CO2 @ 60% Duty Cycle
200A Mixed Gas M21 @ 60% Duty Cycle
Wire Size 0.8-1.2mm

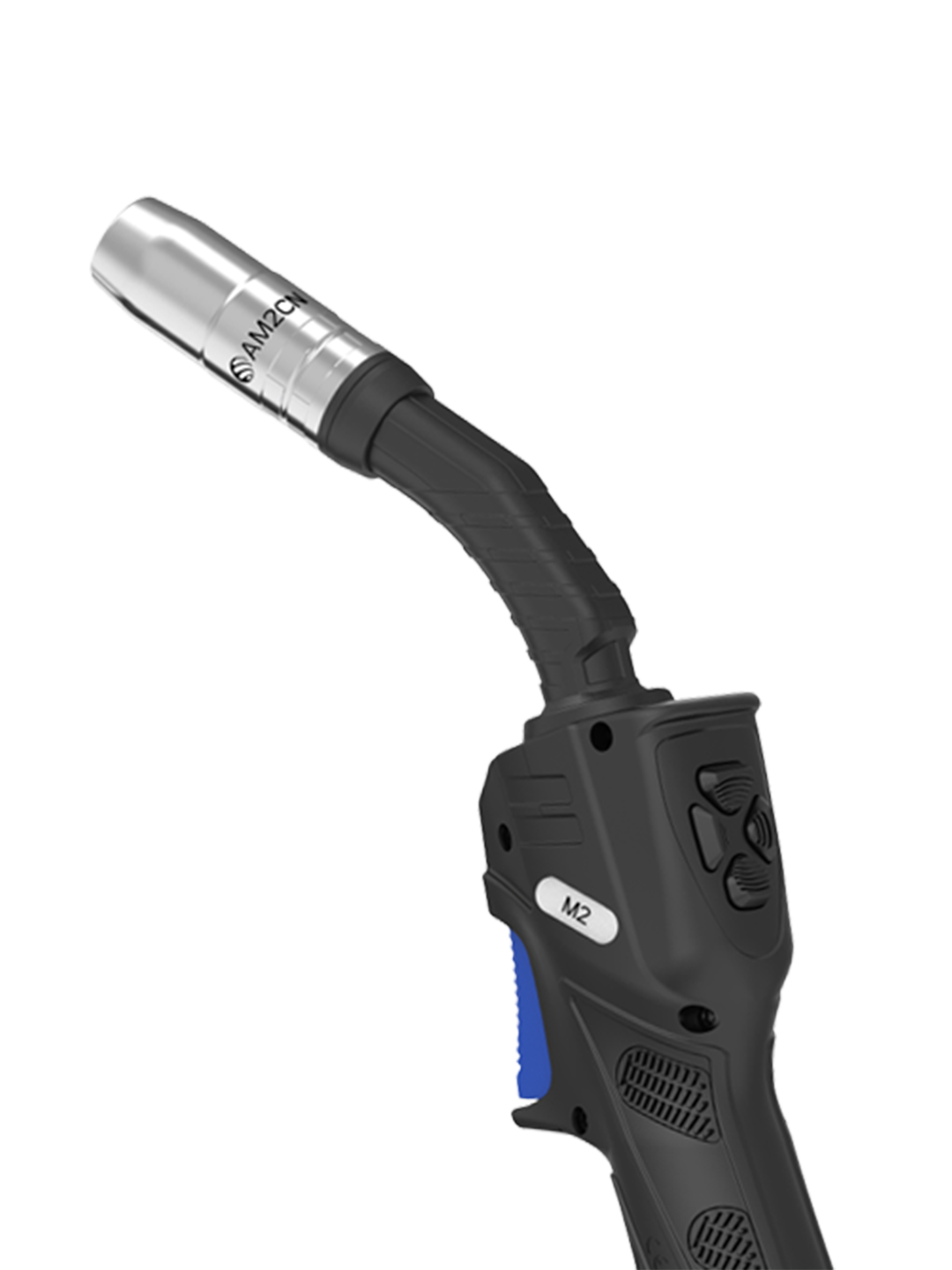

M2 – Analogue – Air-Cooled High Performance Mig Welding Torch

The ground-breaking benefits of an Arc M2. Control of simple machine commands via analogue switches from the torch handle.

Make Work Life Easier

Make Work Life Easier!

 20% improvement in power to weight ratios – great for positional welding.

Technical Specification

Cooling Method Air-Cooled
Rating: CO2 230A
Rating: Mixed Gas M21 200A
Rating: Pulse 110A
Duty Cycle 60%
Wire Size 0.8-1.2mm

Downloads

Arc Machine Control Series

Product Catalogue

Download
Arc M Air-Cooled High Performance Series

Set-Up Guide

Download
View all downloads

Key Elements

Wear Parts

Exacting component design improves performance to weight ratios and wear parts durability

Swan Necks

Cutting edge material selection push the boundaries of established swan neck design

Handle Sets

Control of simple welding parameters via the torch handle by interfacing 2 or 4 way digital control modules

Liners

Developed from in-depth studies of wire types, process and gas coverage

Cable Sets

Improvements in welder comfort and reductions in welder fatigue

Key Benefits

  • Increased area pick up points on contact tips reduce power loss and improve current transfer
  • Left hand threaded tip adaptors negate accidental removal when spatter is embedded at the base of the nozzle
  • All wear parts are laser marked for ease of identification

Key Benefits

  • High tech polymers for improved insulation properties, impact strength and weight reduction
  • Neck to handle interface minimizes transfer of conducted heat to the handle
  • Neck ridges provide ‘finger grip’ under the glove

Key Benefits

  • Welding parameters can be changed via ‘Plug and Play’ 2 or 4 way control modules
  • Torch and machine are digitally interfaced via the switch leads and gun plug body pins

  • Utilizes air gap technology, isolating radiated heat for cooler running handles
  • Knuckle joints and short cable support systems for improved positioning

Key Benefits

  • Steel liners for steel wire, steel metal core and flux core wires
  • Combi-liners for aluminum, stainless steel, stainless steel metal core and flux core wires
  • Unique sealing ring solution for effective sealing from impurities in argon gas processes

Key Benefits

  • New cable structures for improved flexibility and weight reduction
  • SuperSoft -20 Premium power cables, perfect for extreme subzero working temperatures, and up to 40% lighter than standard cables
  • Specified and constructed to last over 1 million flexes in life cycle testing

Core Technologies

SIC Technology

Accumulated spatter breaks free when the nozzle is released

Spatter Isolation Chamber

Spatter created by the arc is held within a unique chamber that collects the molten metal droplets

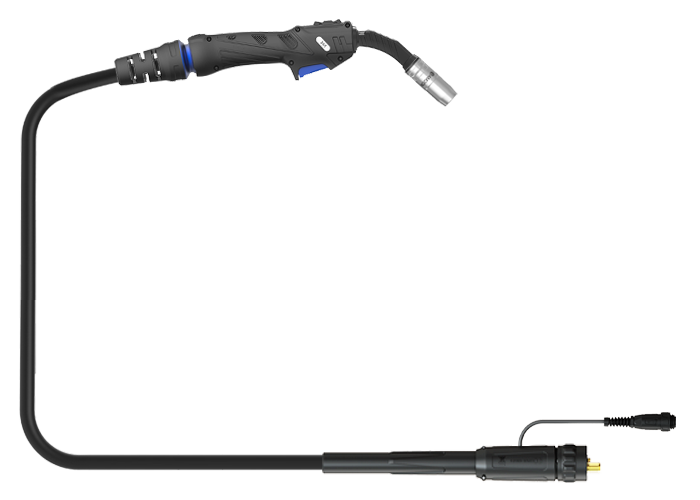

In The Box

Standard Set-up

Getting Started

Spanner
